E100-9S-E/L

Intel® 7th Generation processors
3.5" Rugged Fanless Box SuperServer
Harsh Environment
Fanless Design

3.5″ Fanless Box SuperServer E100-9S Family

APPLICATIONS:

  • Industrial Automation
  • Retail
  • Smart Medical Expert Systems
  • Kiosk
  • Interactive info system
  • Digital Signage

VERSIONS:

  • SuperServer E100-9W-H: 8th Generation Intel® Core™ i7-8665UE Processor
  • SuperServer E100-9W-E:  8th Generation Intel® Core™ i5-8365UE Processor
  • SuperServer E100-9W-L:  8th Generation Intel® Core™ i3-8145UE Processor
  • SuperServer E100-9W-C: Intel® Celeron® Processor 4305UE

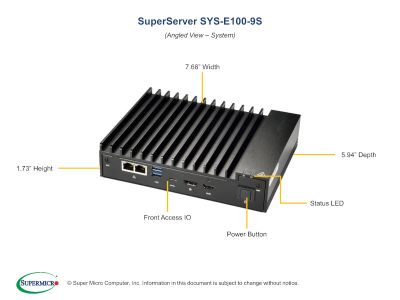

Physical Stats

  • 3.5″ SBC
  • CSE-E101-01

Memory

  • Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2133MHz, in 2 DIMM slots
  • DDR4 up to 2133MHz
  • 16GB, 8GB, 4GB
  • 1.2V

On Board Devices

  • Single LAN with Intel® I210IT
  • Single LAN with Intel® PHY I219LM
  • Intel® UHD Graphics 620

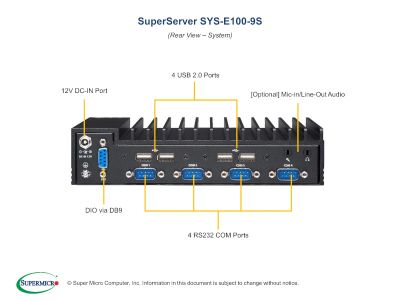

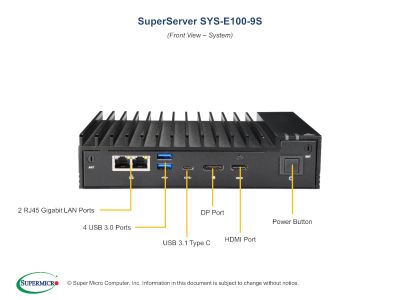

Input / Output

  • 1 USB 3.1 (Type C)
  • 2 USB 3.0 (rear via header)
  • 4 USB 2.0 (rear via headers)
  • 1 DP (Display Port) port
  • 1 HDMI port
  • 4 COM ports (4 headers)
  • 2 RS232, 2 RS232/422/485, RS-485 supports auto flow control
  • 1 HD Audio header (Mic-in/Line-Out) (option)
  • 1 DIO via DB9

Expansions Slots

  • 1 Full size Mini-PCIe (1 USB 2.0, 1 PCIe Gen2, 1 SATA Gen3)
  • Interface: SATA and PCIe 3.0 x1 and USB 2.0
  • Form Factor: B-Key 2280

Options

  • 7th Generation Intel® Core™ i7-7600U Processor
  • 7th Generation Intel® Core™ i5-7300U Processor
  • 7th Generation Intel® Core™ i3-7100U Processor
